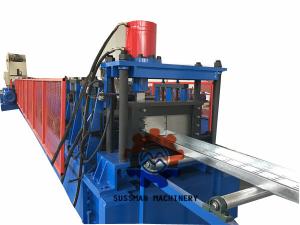

1-2mm Galvanizing Steel , Perforated Cable Tray Cold Roll Forming Machine

Name: 12mm Galvanizing Steel Perforated Cable Tray Cold Roll Forming Machine
Brand: Sussman
Price: 59500 USD

Wholesale 1-2mm Galvanizing Steel , Perforated Cable Tray Cold Roll Forming Machine from china suppliers

Brand Name : Sussman

Model Number : RF-CT

Certification : CE,SGS, ISO

Place of Origin : China

MOQ : 1 set

Delivery Time : 70 days after deposit

Packaging Details : Standard Packing with Steel Wire fixed and film coated

Price : USD59500-USD69500

Profile width : 100-600mm

Material thickness : 1-2mm galvanized coils

Profile height : 50-100mm

Uncoiler : 5 tons hydraulic

Punching way : Hydraulic punching 1 set

Rolling speed : 5-6m/min

Roller stations : 20 stations

Contact Now

1-2mm Galvanizing Steel , Perforated Cable Tray Cold Roll Forming Machine

Specifications

	Items	Specifications
Materials	Width of the profile	100-600mm
	Thickness	1-2mm galvanized coils and black steel
	Height of the profile	50-100mm
	Un Coiler	5 tons hydraulic
Punching	Way	Hydraulic punching 1 set
Forming system	Rolling Speed	5-6m/min
	Roller Stations	About 20stations
	Roller Material	Gcr15with quenching
	Shaft	Dia 90mm
	Maim Motor Power	15 kw
	Hydraulic cutting Power	7.5 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	380V, 50HZ,3 phase Also can satisfy Customer’s require
	Control System	PLC (Panasonic) as list in the note
	Weight	About 18 tons
	Profile width and height adjustment	Control by the motor
	Way Of Drive	1.2 inch single chain
	Size of main machine	About Length 13000mm* Width 1800mm* Height 1000m

Description:

A cable tray system, is "a unit or assembly of units or sections and associated fittings forming a rigid structural
system used to securely fasten or support cables and raceways." Cable trays are used to hold up and
distribute cables. Cable tray roll forming machine is special designed for its production.

Machine Components:

S.N	Equipment name	Quantity
1	5T hydraulic un-coiler	1 set
2	Coil Levelling device	1 set
3	Hydraulic Punching	1 set
4	Hydraulic Pre-cutting	1 set
5	Main roll forming machine	1 set
6	Hydraulic station	1 set
7	Control system ( including control box)	1 set
8	Out tables	2 units
9	Spare parts	1 package

Working Flow of Roll Forming Machine
Uncoiler—Feeding—Leveling—Punching&Cutting—Roll forming—Output table

1-2mm Galvanizing Steel , Perforated Cable Tray Cold Roll Forming Machine

Profile drawing of cable tray
