Rack Beam Tube Roll Forming Machine Manufacturer, Rack H Beam Rolling Machine
The equipment is consisted of auto de-coiler, guide device,hydraulic punching system, forming section, saw cutting section, collection table and electrical control system etc.
Rack Beam Machine Main Specifications
1. Suitable Plate Material: thickness 1.2-2mm, Galvanize steel or black steel
2. Working Line Speed: 4-5meters / min
3. Forming machine: about 20 stations
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
6. Driven system: gear box driven
7. Main Power with reducer: 15KW WH Chinese Famous
8. Cutting: Fly saw cutting
9. The whole machine is controlled by industry computer-PLC.
10 PLC--Panasonic, Japan English and Chinese Language
11. Touch Screen--Panasonic Japan
12. Encoder--Omron, Japan
13. Electric parts--Schneider
Rack Beam Machine’s Components
| S.N | Equipment name |
| 1 | 3T hydraulic un-coiler |
| 2 | Leveling device |
| 3 | Main roll forming machine |
| 4 | fly saw cutting |
| 5 | PLC Control system ( including control box) |
| 6 | Out tables |
| 7 | Wig Welding device |
| 8 | Cooling system |
| 9 | Safety Cover |
| 10 | Spare parts |
Working Flow of Rack Beam Machine
Decoiling---Guiding and Leveling----Roll Forming----Cutting----Product Collecting
Rack Beam Profile reference
3 ton hydraulic De-coiler& coil car
Diameter: 460-520mm expansion.
Expansion: hydraulic
Capacity: 3000kg per mandrel
Max Coil Width: 500mm
Drag tension brake with variable brake tension adjustment valve
Leveling device
7 rolls leveling, 3 rolls up and 4 rolls down, roller leveler rolls are more smaller, get flatting better
Diameter is Ø 70mm, chrome and HRC60 heat treatment to secure the smooth surface

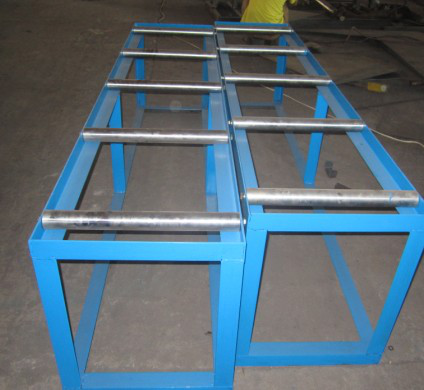

Out tables
Length: 2 meters
Number: 2 units
Cutting: Fly saw cutting
Cutting after forming: Cut the sheet after roll forming to required length, fly saw cutting
Cutting motion: The main machine automatically cut, and the cutter will move on the guide rails forward and back non-stopping.
Length measuring: Automatic length measuring
Tolerance of length: 6m+/- 0.5mm
