High Speed Roller Shutter Door Roll Forming Machine 60mm Octagon Shaft

Name: High Speed Roller Shutter Door Roll Forming Machine 60mm Octagon Shaft
Brand: SUSSMAN
Price: 1 USD

Wholesale High Speed Roller Shutter Door Roll Forming Machine 60mm Octagon Shaft from china suppliers

Brand Name : SUSSMAN

Model Number : SS-OP

Certification : SGS.ISO,CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60 days

Packaging Details : standard packing film and steel

Roller Stations : 20 stations

Material thickness : 0.4-1.2mm

Main motor power : 7.5Kw

Roller material : 45# steel

shaft material : 45# steel

cutting blade material : Cr12

Hydraulic cutting pressure : 10-12Mpa

Contact Now

CE&SGS Certificated 60mm Octagon Shaft High Speed Roller Shutter Door Forming Machine

Production Line Machine List

Serial No.	Commodity & Description	Quantity
1	3T manual uncoiler	1 set
2	feeding guiding	1 set
3	Main roll forming machine	1 set
4	Output table	1 set
5	Main drive gear box	1 set
6	Fly saw cutting	1 set
7	Controlling system (including cabinet)	1 set
8	Water cooling system	1 set
9	Cassette	2 sets

Machine Technical Data

Material Thickness	0.4-1.2mm, stainless steel
Forming speed	10-12m/min
Forming stations	about 20 stations
Main motor power	7.5Kw
Roller material	45# steel
shaft material	45# steel
Cutting blade material	Cr12
Hydraulic cutting pressure	10-12Mpa
Cutting blade material	Cr12

Standard Profile :

High Speed Roller Shutter Door Roll Forming Machine 60mm Octagon Shaft

Working Flow of Octagon Pipe Roll Forming Machine

Uncoiling – feed Guiding–Roll forming ––fly saw cutting – Run-out table

Photo Gallery

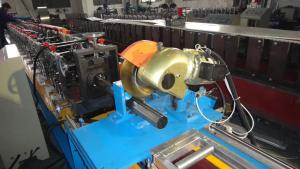

High Speed Roller Shutter Door Roll Forming Machine 60mm Octagon Shaft
