CE certification Steel Truss Roll Forming Machine roller matreial PLC control system

Name: CE certification Steel Truss Roll Forming Machine roller matreial PLC control system
Brand: Sussman
Price: 1 USD

Wholesale CE certification Steel Truss Roll Forming Machine roller matreial PLC control system from china suppliers

Brand Name : Sussman

Model Number : SS-MF

Certification : SGS, ISO9001, CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10 sets per month

Delivery Time : 35-40 days

Packaging Details : Standard packing

Material : Zinc steel or color panited steel

Thickness : 0.55mm-0.8mm

Forming speed : 10-15m/min

Forming stations : 11 stations

Cutting way : hydraulic cutting

Transmission : 1 inc chain drive

Hydraulic power : 4 Kw

Main motor power : 5.5Kw

Machine size : 5500mm*800mm*800mm

Machine weight : Around 4 Ton

Contact Now

Durable Quality Light Gague Galvanized Steel Truss Roll Forming Machine

Technical parameter

Item	Technical data
Steel sheet thickness	0.55-0.8mm (depend on requirement )
Hydraulic power	4kw
Transmission way	chain
Chain	1 inc chain
Capacity of Decoiler	3 Ton passive decoiler
Forming Speed	10-12m/min
Roller Groups	about 11 stes main roller
Roller Material	45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62
Roller Diameter	100mm
Principal Axis	45# high grade steel with quenching treatment
Main Motor Power	5.5 Kw
Dimension	55006001000mm

Applications

Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...

Main Components

Machine name	Quantity
3 ton manual Decoiler	1 set
Main roll forming machine	1 set
Hydraulic station	1 set
Hydraulic cutting device	1 set
Finished poducts tabels	2 stes
PLC control system	1 set
Ebossing roller	1 set

Furring Channel Working Flow

De-coiler—→feedingwithguide—→main roll forming machine—→cutting—→ run out table

CE certification Steel Truss Roll Forming Machine roller matreial PLC control system

Furring Channel Profile Drawing

CE certification Steel Truss Roll Forming Machine roller matreial PLC control system

Advantage

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

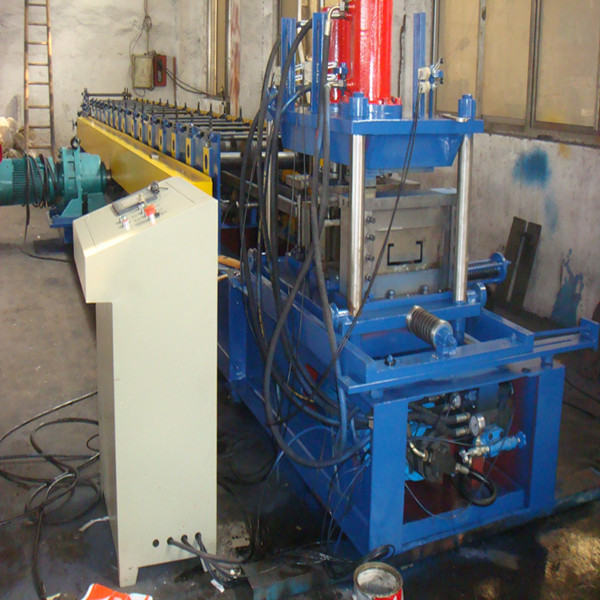

Machine Photo

CE certification Steel Truss Roll Forming Machine roller matreial PLC control system

Loading pictures

CE certification Steel Truss Roll Forming Machine roller matreial PLC control system
