Partial Cassette H Punching Hole Stud Track Drywall Roll Forming Machine
Technical data
| | Items | Specifications |
| Material of coil | Material Thickness | 0.3-1.2mm galvanized steel |
| De-coiler | Weight | 3 ton passive decoiler |
| Forming system | Rolling Speed | 10 m/min |
| | embossing | 1 set of rolls |
| | Roller Stations | About 13 stations forming |
| | Roller Material | Cr40 Steel with quenching |
| | Shaft Material | 45# Steel Diameter 75mm shaft |
| | Maim Motor Power | 5.5 kw |
| | Hydraulic cutting Power | 4 kw |
| Cutting system | Material Of Cutting | CR12 with quench treatment |
| | Hardness | HRC58-62 |
| | Tolerance | +-1.5mm |
| | Cutting blade | 1 set of cutting blade |
| Electrical control system | Electric Source | 380, 50HZ,3 phases |
| | Control System | PLC Delta |
| | Weight | About 4 tons |
| | Way Of Drive | 1 inch single chain |
| | Size of machine | Length 7500mm* Width 600mm* Height 800m |
Working Flow:
Decoiler—feedingwithguide—Rollforming—punching&Cutting—Products collecting
Profile Drawing:

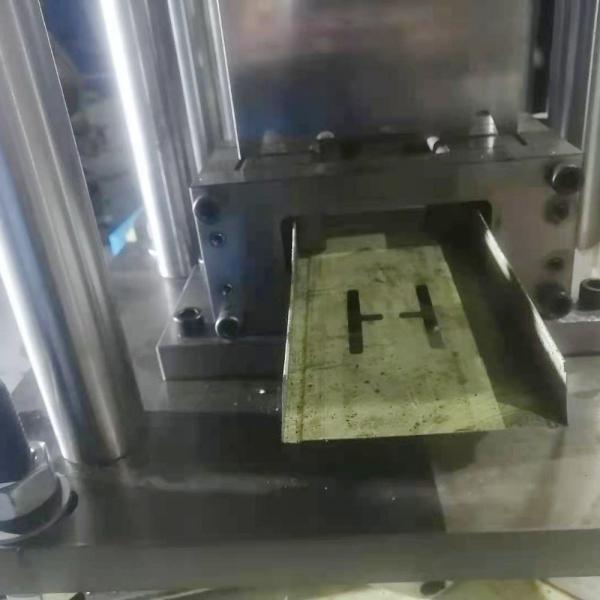

with punching holes
To make all of the 6 profiles in one machine by changing spacers
Machine List:
| 2 ton double heads de-coiler | 1 set |
| Hydraulic punching device | 1 set |
| Main roll forming machine | 1 set |
| Cutting device | 1 set |
| Cassettes for different flange | 2 sets |
| PLC Control box | 1 unit |
| Hydraulic station | 1 unit |
| 4 meters out table | 1 unit |
| Safety cover | 1 set |
| Extra punching die | 1 set |
| Extra cutting blade | 1 set |
| Embossing | 1 set |
Cassettes:
Loading Pictures:
