C Shaped Drywall Roll Forming Machine 100mm 150mm Width Adjustable

Brand Name : Sussman

Model Number : RF-ST

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Supply Ability : 10 sets/month

Delivery Time : 60 days after deposit

Packaging Details : Film and steel

Type : C Shaped Roll Forming Machine

Stations : 13 Rollers

Motor power : 7.5Kw

Thickness : 0.8-1.5mm galvanized steel coil

Transmission : Single Chain

Width : 100mm and 150mm

Contact Now

100mm 150mm Width Adjustable C Shaped Drywall Roll Forming Machine

Galvanized drywall profile for dry construction. They are used for bearing and non-bearing walls, partitions, beams, trusses, columns, roof straps, ceiling, architectural and decorative details.


1. Technical Parameter

NO.
Item
Specification
Material
Raw material
Galvanized steel
Thickness
0.8 -1.5mm
Machine
Roller station
13
Shaft diameter
60 mm
Solid shaft material
High grade 45# steel with Cr12 mov coated,
quenching & tempering & treatment
Roller material hardness
Gcr15 50-55HRC
Machine size
About 5.5*0.8*1.0m
Machine weight
About 3.5 tons
Machine color
As customer need
Working speed
8-12m/min
Cutter
Hardness
58-62 HRC
Cutting tolerance
± 1mm
Material
Cr12
Operate
Hydraulic stop cutting
Power
Driving way
Chain
Main motor
5.5 KW
Pump motor for cutter
3 KW
Voltage
380V/50HZ, 3P or Customized as customer' request
Control system
PLC brand
Delta made in Taiwan
Screen
Touchable screen
Language
Chinese and English or add customer need language
Decoiler
Operation
Manual
Weight capacity
3 Tons
Price
Free as gift
Receive table
Operation
Manual
Length
3 m



2. Machine Components

3T passive decoiler 1 set
Hydraulic Cutting device 1 set
Main roll forming machine 1 set
Control box system 1 unit
Out tables 2 units
Tool box 1 package



3. Features of the production line

1) Directly input the data on the touchable screen, it is easy operation.

2) Automatically continually manufactures high quality product with PLC.

3) Saving time and cost owing to high speed running with hydraulic system.

4) Professional designing for manufactures roofing & walling

5) Customers decide the profile of products.


4. Steel profile
C Shaped Drywall Roll Forming Machine 100mm 150mm Width Adjustable

.

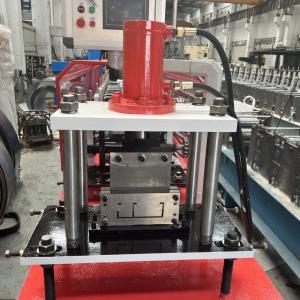

5. Machine picture

C Shaped Drywall Roll Forming Machine 100mm 150mm Width Adjustable

C Shaped Drywall Roll Forming Machine 100mm 150mm Width Adjustable
